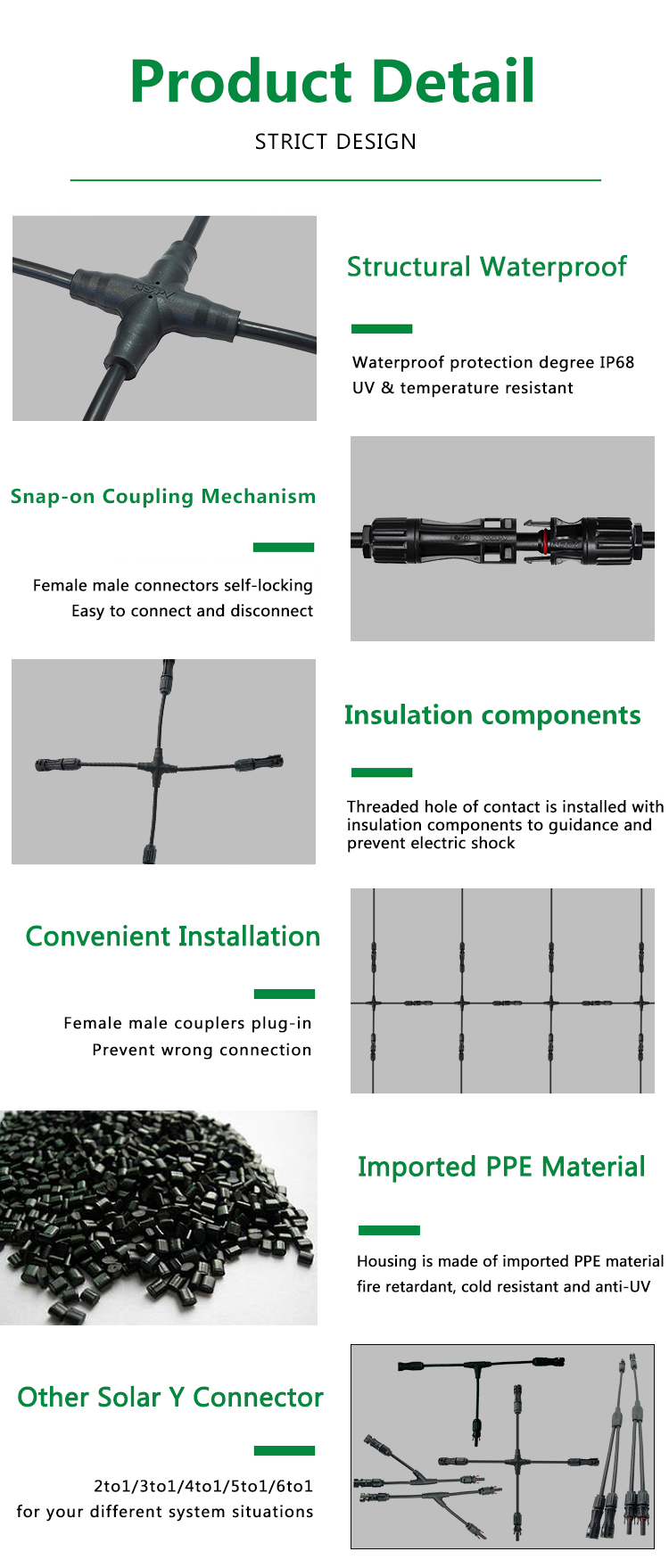

1500V Y Harness with fuse,solar straight cable with fuse

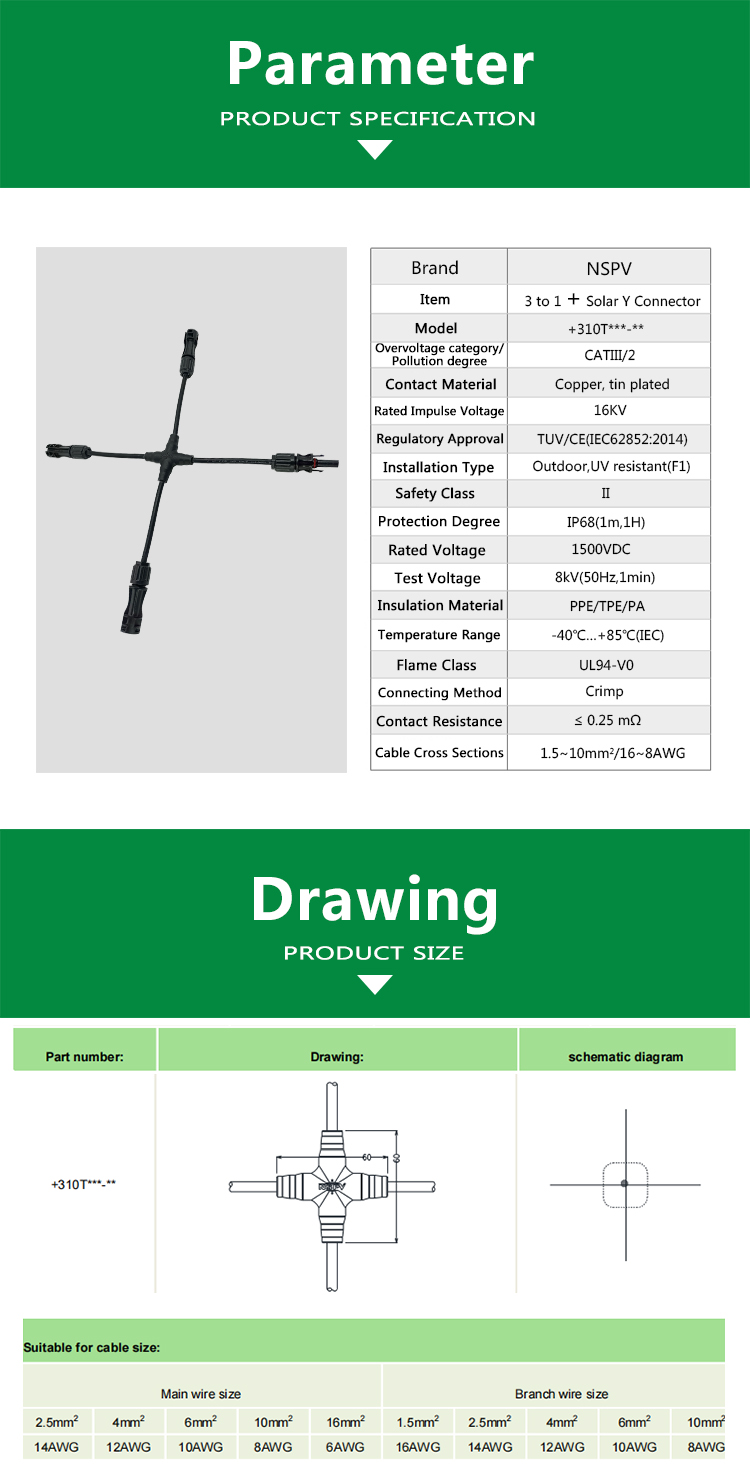

| PV 2 to1 YH Type Cable Assembly | ||||

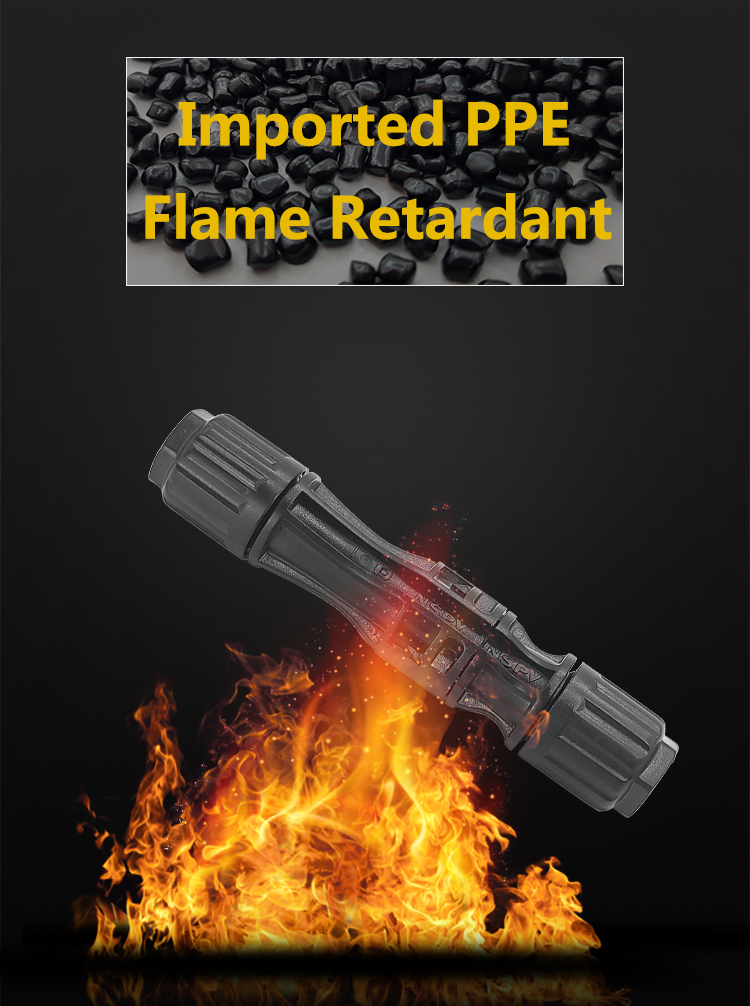

| Insulation material | PPE/TPE | |||
| Rated current(Without fuse) | 30A | |||
| Rated voltage | 1000VDC/1500VDC | |||
| Test voltage | 6kV(50Hz,Imin) | |||
| Typical contact resistance | <5mΩ | |||

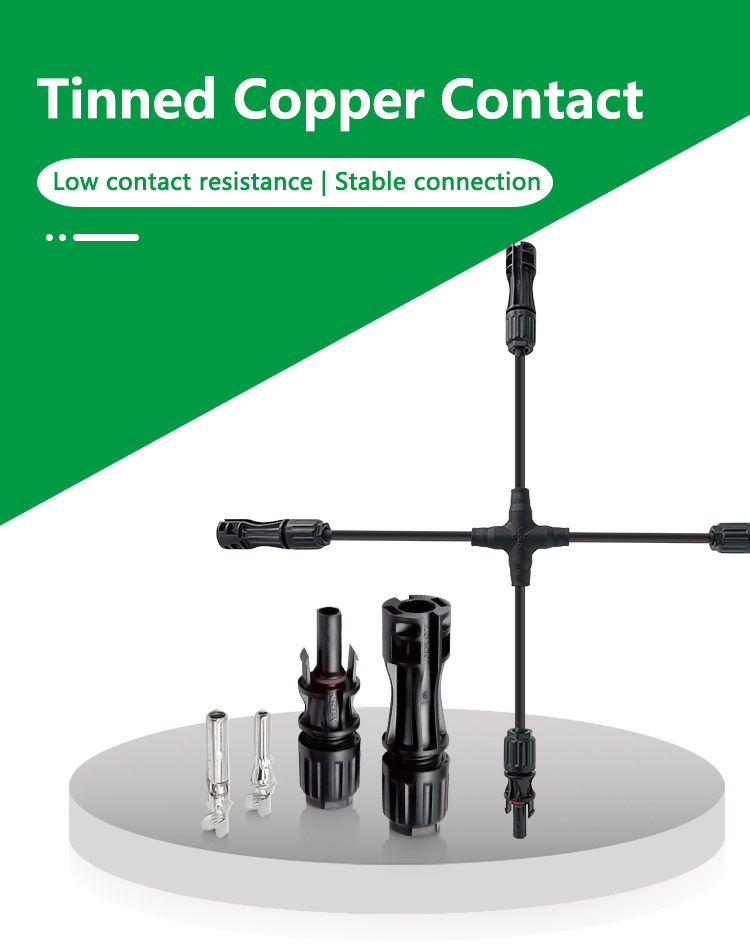

| Contact material | Copper,Tin plated | |||
| Degree of protection | IP67 | |||
| Safety degree | II | |||
| Overvoltage category/Pollution degree | CATIII/2 | |||
| Flame class | UL94-V0 | |||
| Ambient temperature range | -40℃…+85℃(IEC) | |||
| Suitable cable cross sections | 4.8=8.8sqmm | |||
| Upper limiting temperature | 110℃(IEC) | |||
