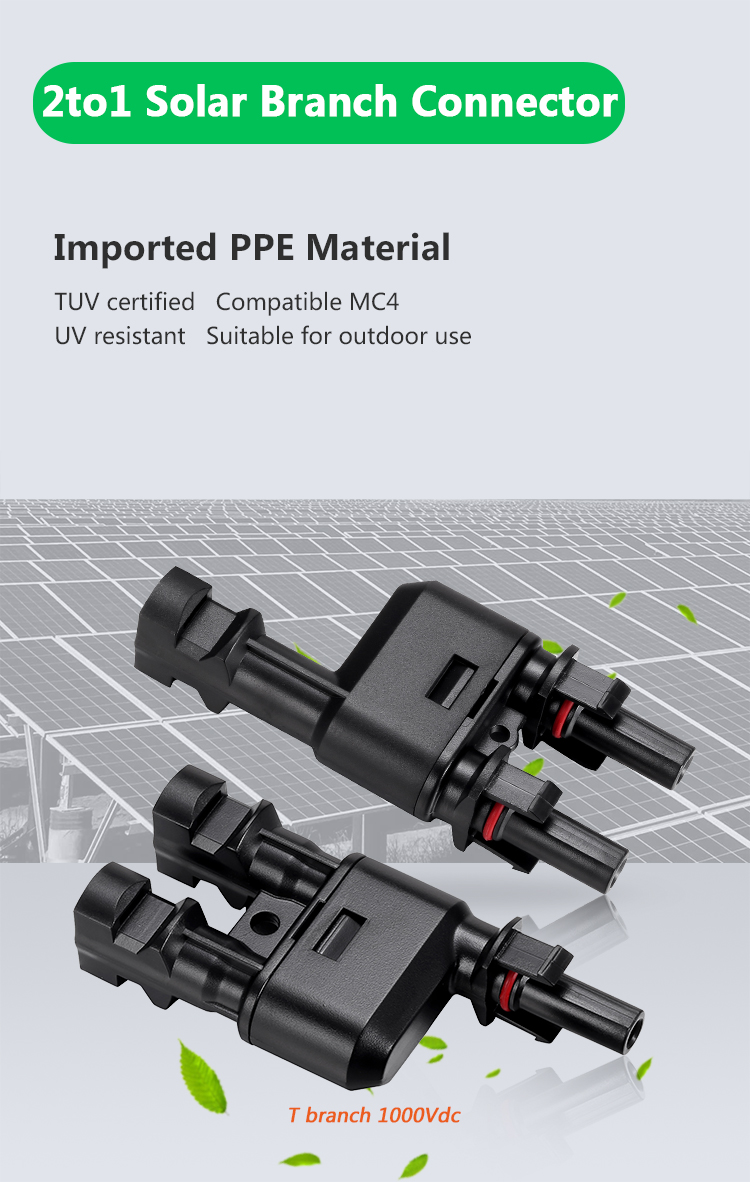

Solar photovoltaic 2-turn-1 tee bus connector 1000V

undefined
undefined
undefined

undefined

undefined



PV 4.0 confluence tee joint
Connector for solar module confluence
The internal conductor is copper tinned
Interface type mc4.0
Photovoltaic waterproof adapter
Use insulating material PPE
PPE has good electrical performance, UV resistance and weather resistance. It is suitable for long-term outdoor use

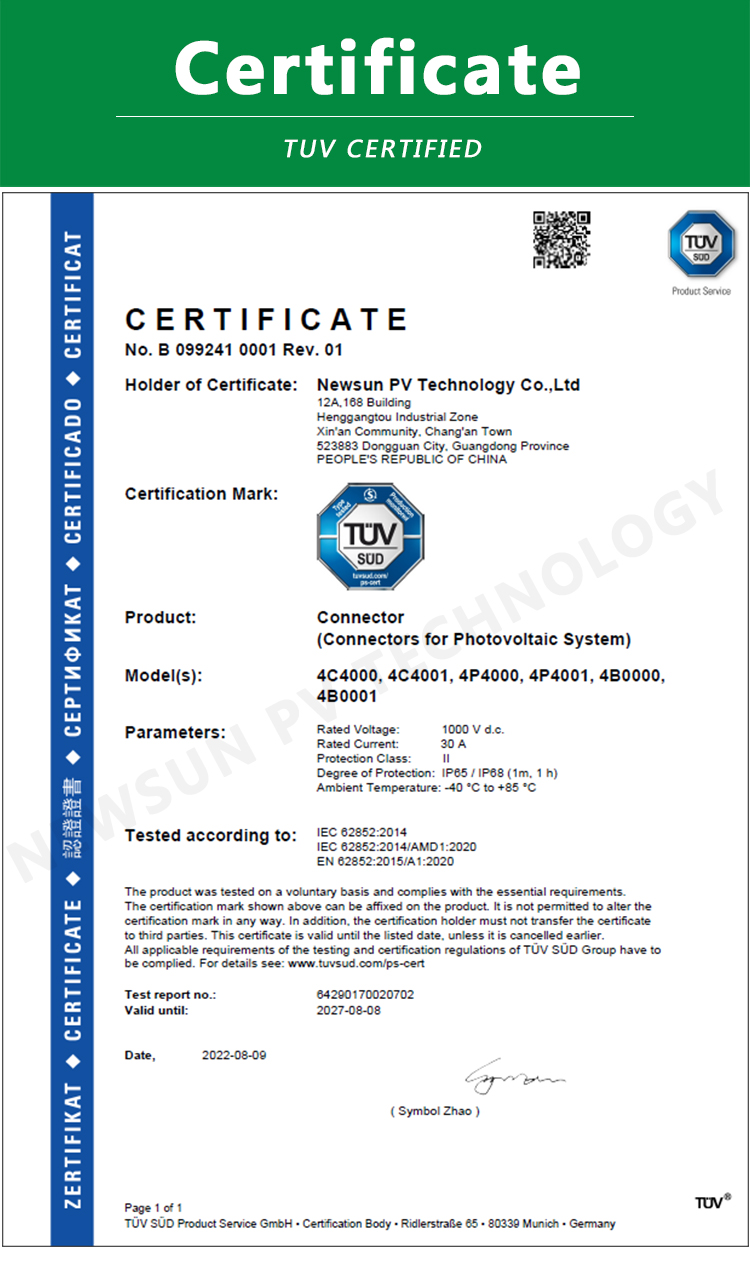

TUV certified products
It can be matched with 99% mc4.0 connectors (some manufacturers have different designs of rubber parts, and the solid parts cannot be matched)
The PPE shell has strong anti-aging, anti UV and high level contact protection ability, and meets the requirements of outdoor harsh environment. This product has passed TUV certification and conforms to DIN V VDE V 0126-3 standard. It provides a safe, reliable and stable solution for solar cell modules. It can be used for 10awg, 12awg and 14AWG wires.

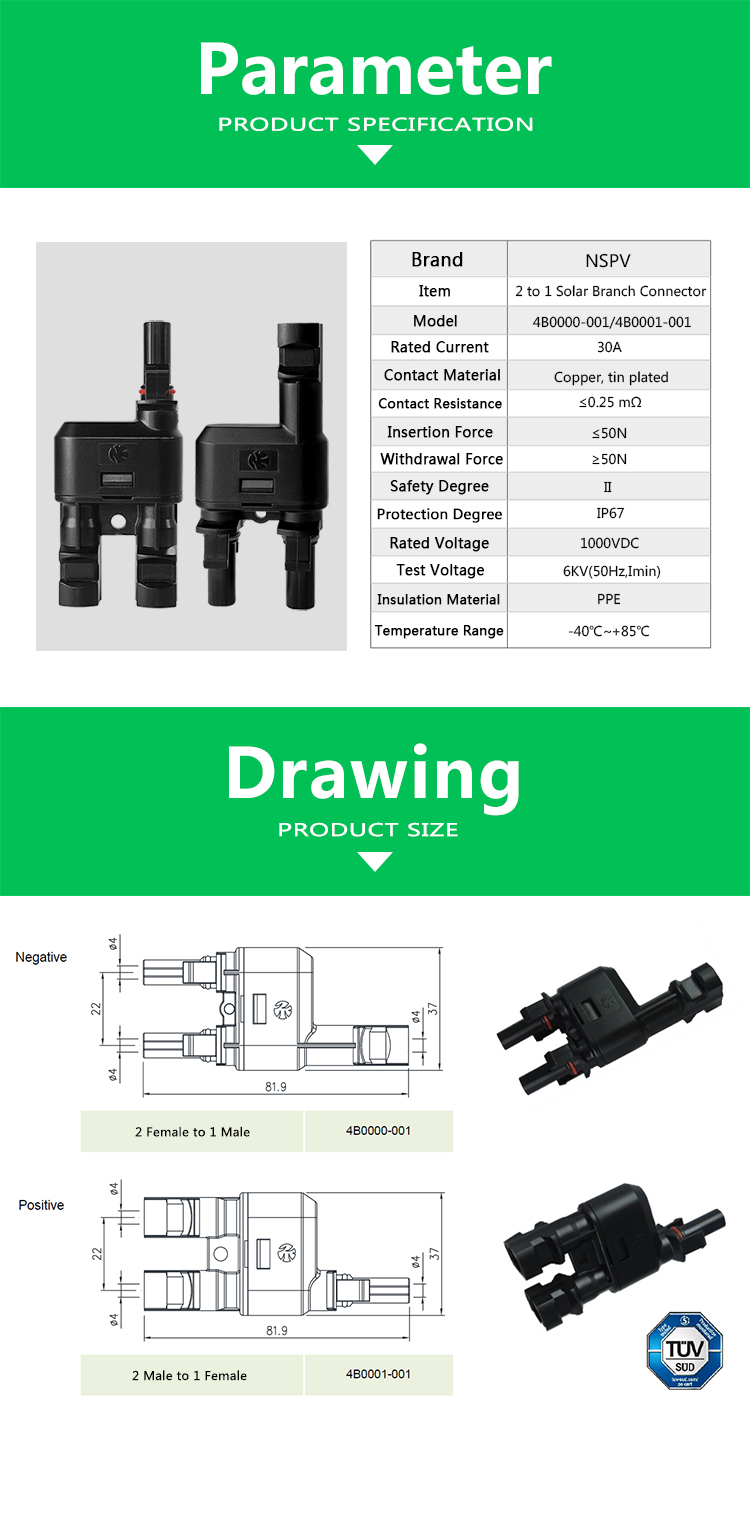

Part No.: 4b0000-001 / 4b0001-001
Insulating material.......................................... PPE
Rated current.......................................... 30A
Rated voltage.......................................... 1000V (TUV) & 600V (UL)
Test voltage.......................................... 6kV (50Hz, lmin)
Contact resistance..................................... ≤ 5m Ω
Connection material.......................................... copper; tinned
Degree of protection.......................................... IP2X / IP67
Suitable degree of protection.......................................... II
Fire rating.......................................... ul94-v0
Maximum temperature of materials used.......................................... 110 ℃
Pull out force.............................................. ≥ 50N
Insertion force..................................... ≤ 50N
Service temperature..................................... - 40 ℃ until + 85 ℃
Terminal diameter Ф four
