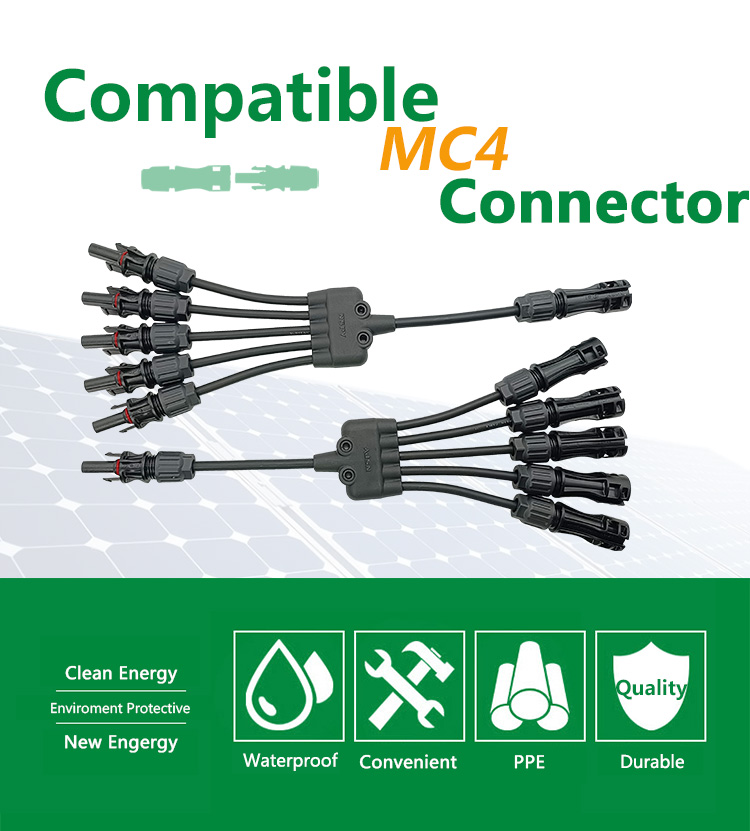

Photovoltaic 5-turn 1 harness connector 1500V

undefined

undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined
undefined

undefined
undefined
undefined
尾部完成_01
尾部完成_02
尾部完成_03
服务_01
服务_02

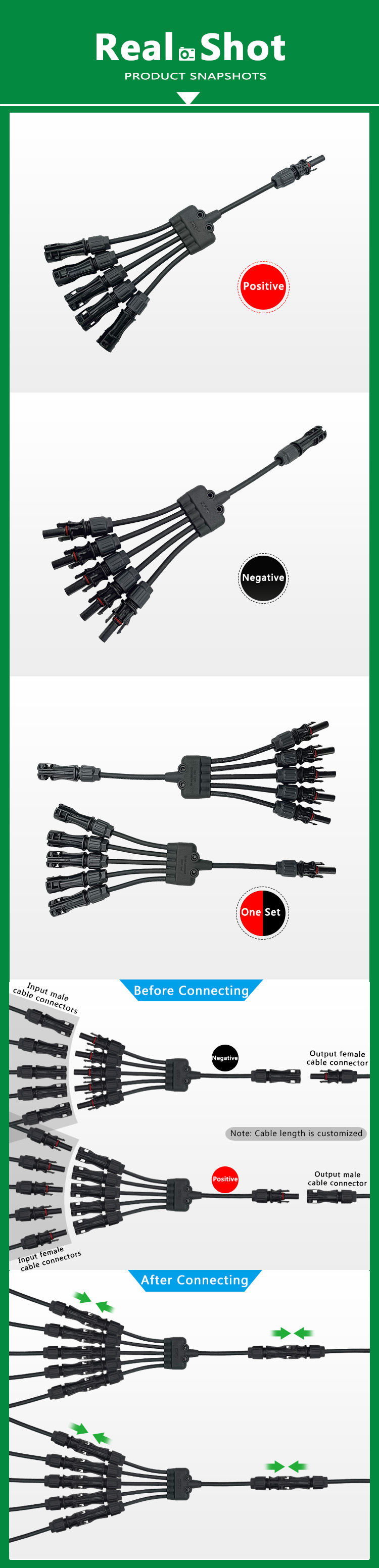

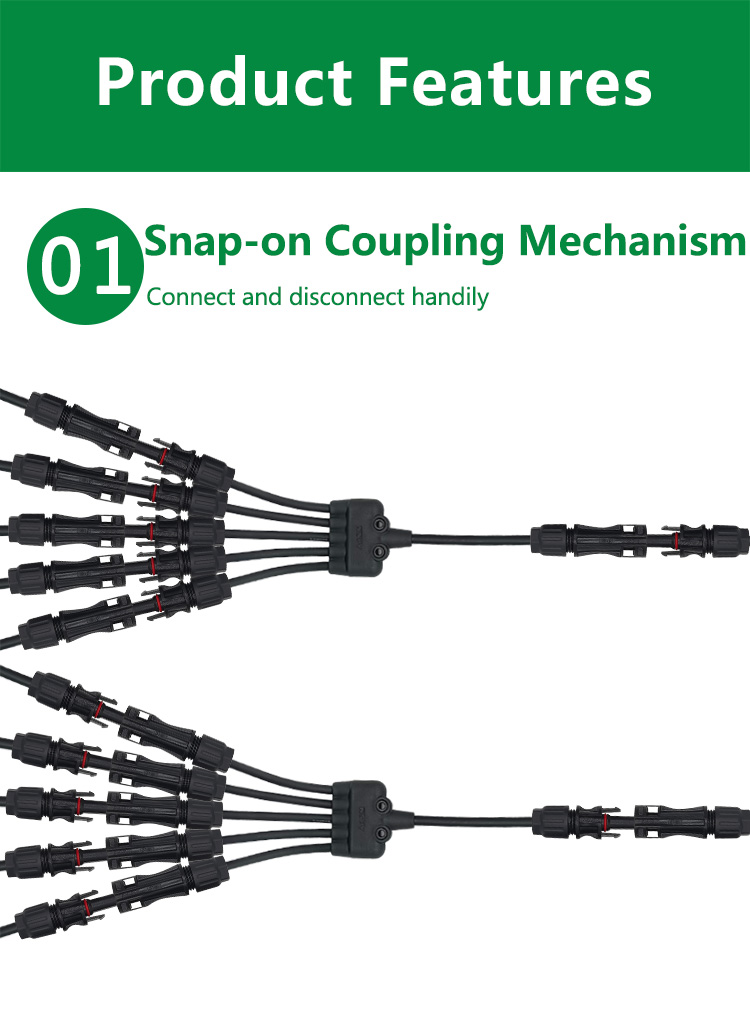

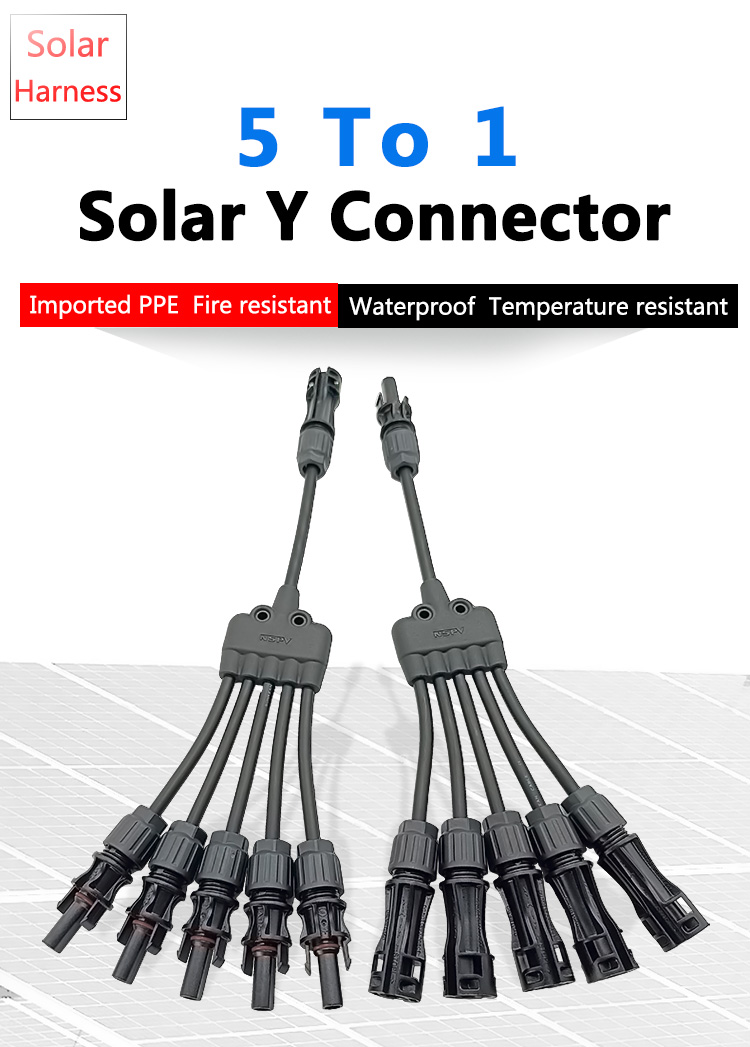

Y-Cable 5转1防水接头

适用于太阳能光伏发电系统,

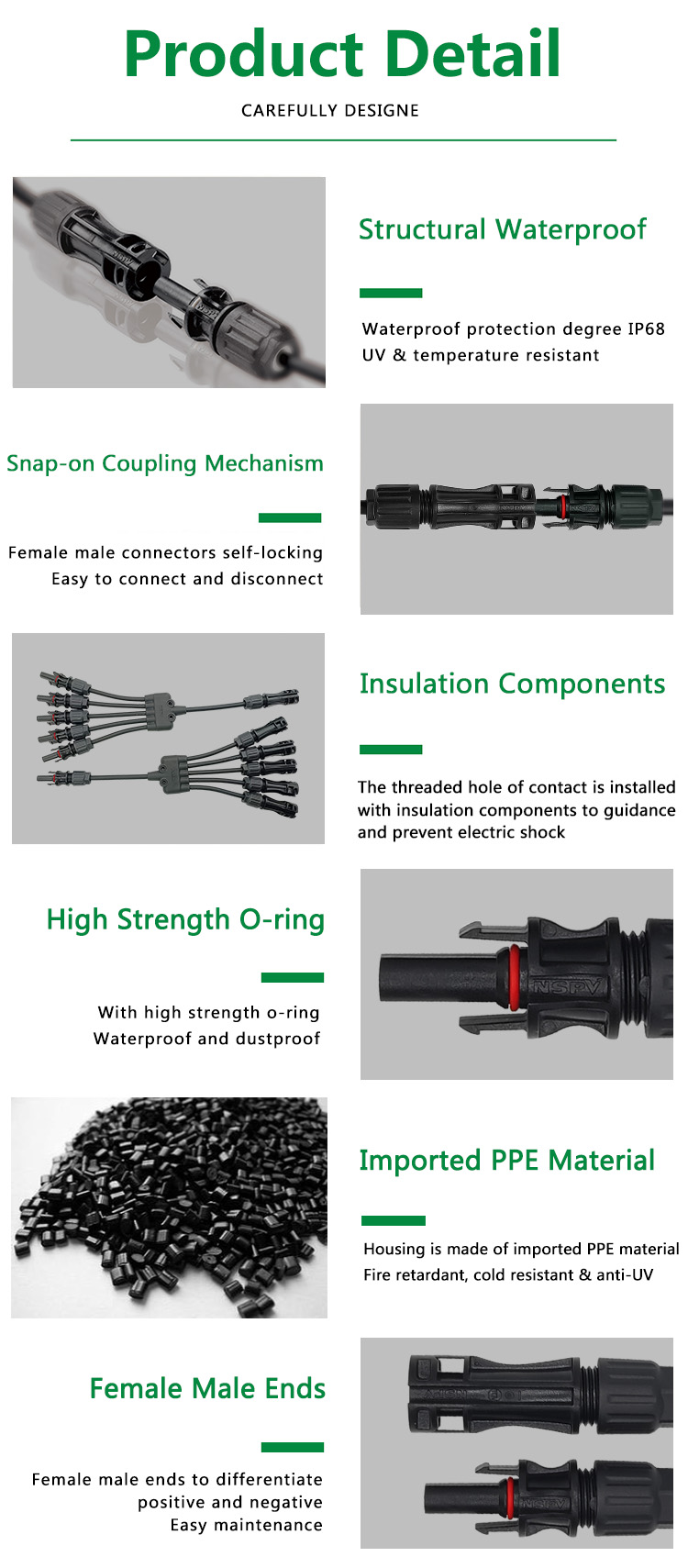

产品中Molding部份采用绝缘材料TPE,接头部份全部采用MC4/MC3线端连接器为连接,可跟市面上的MC4/MC3接头匹配使用,方便客户安装

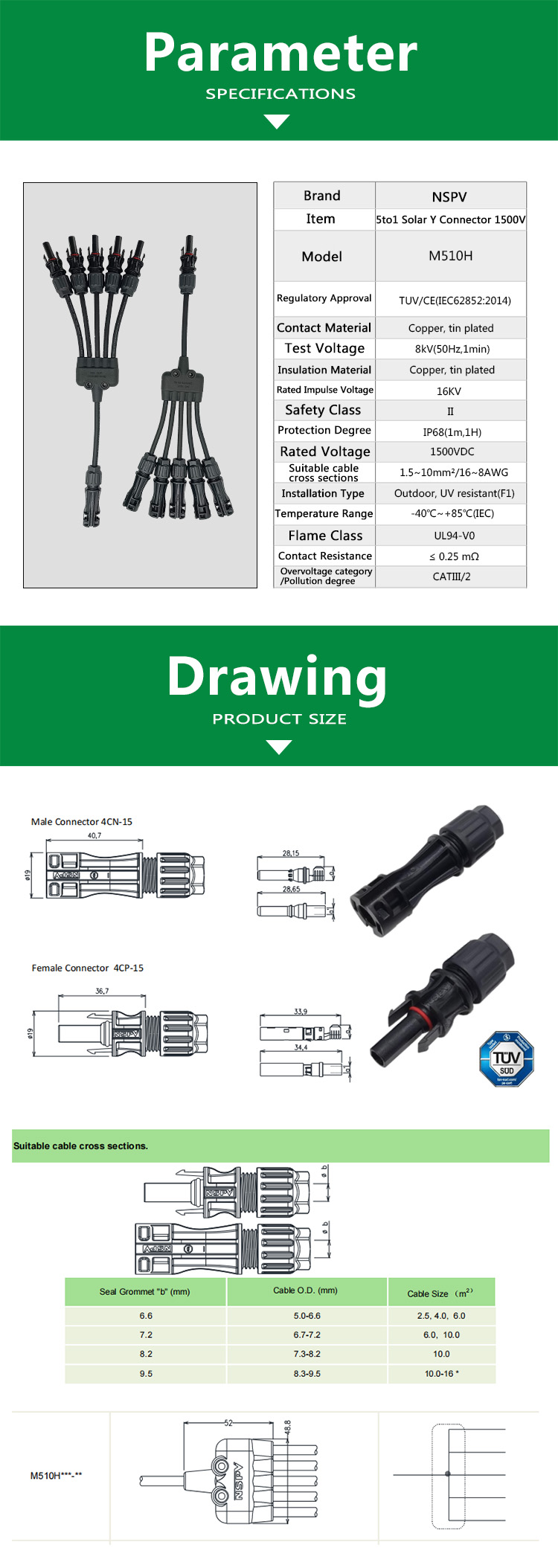

产品规格:

额定电流..........................................................30A

额定电压...........................................................1000V(TUV)&600V(UL)

测试电压..........................................................6KV(50Hz,1min)

接触电阻..........................................................≤5 mΩ

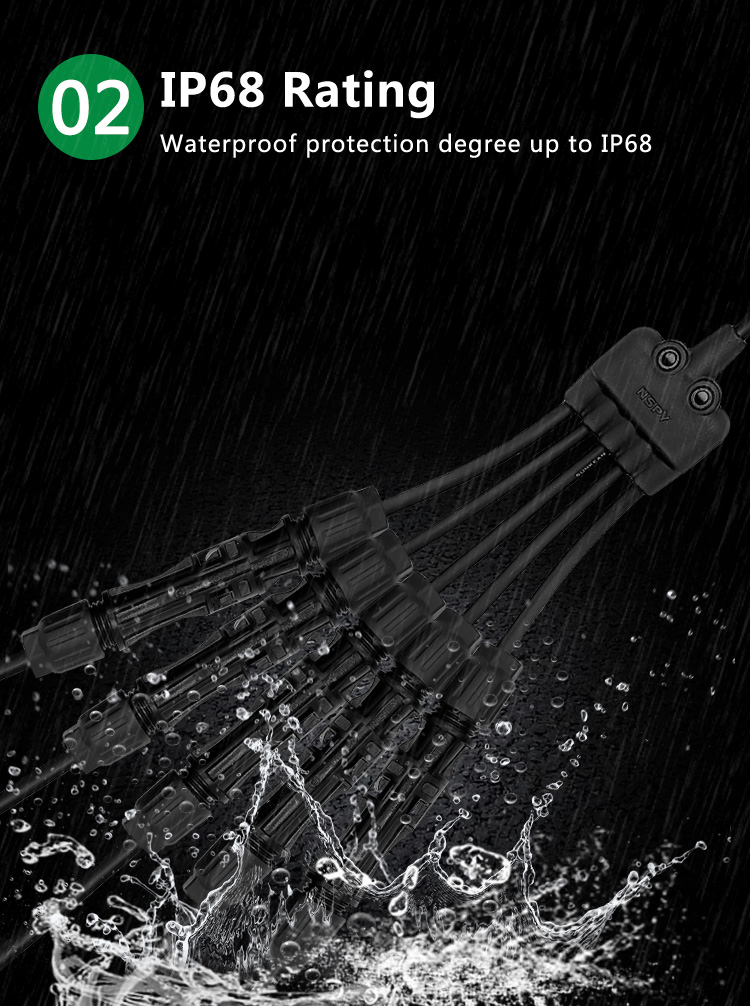

防水等级..........................................................IP2X/IP67
安全等级..........................................................II

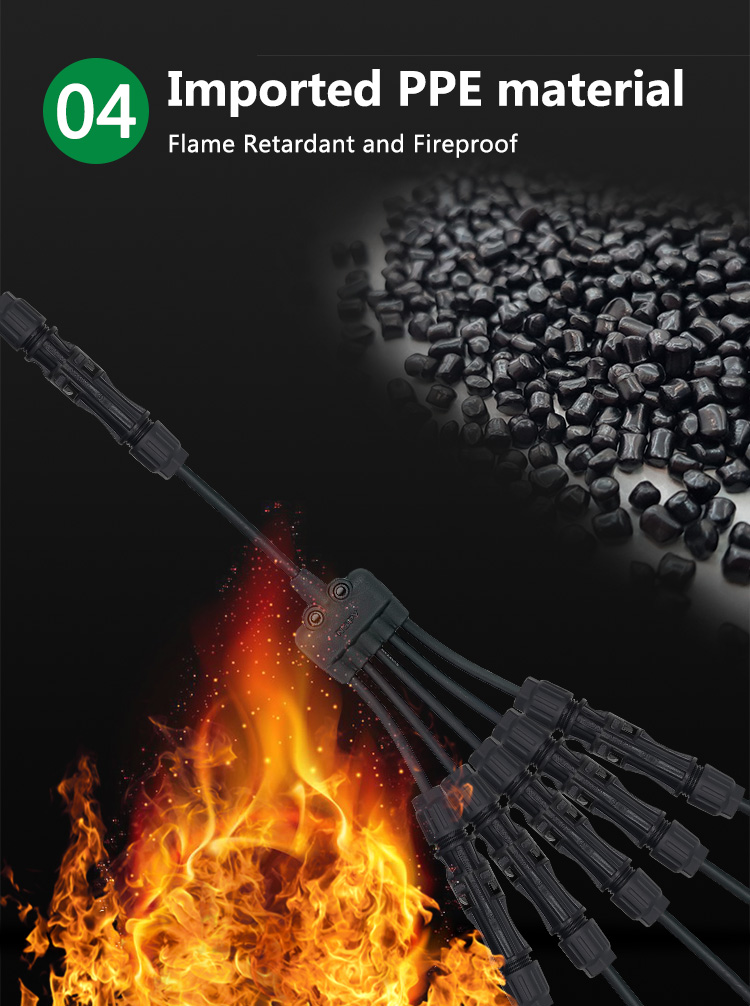

防火等级..........................................................UL94-V0
使用材料最高温度..............................................110℃

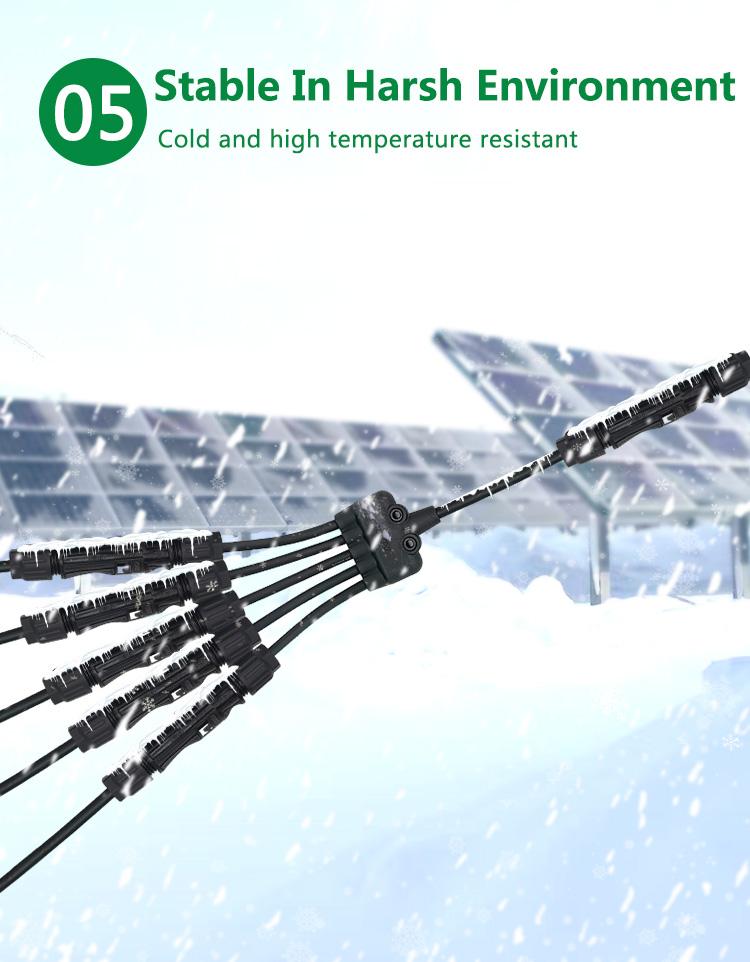

使用温度..........................................................-40℃ until +85℃
连接线规格.......................................................2.5~6.0mm²(10AWG~14AWG)
